Textile Pre Press UV Laser Direct Imaging Machine 3540dpi

Textile Pre Press UV Laser Direct Imaging Machine LDI Equipment

CTS is a computer-to-screen (CTS) imaging and exposure system (Chinese, Japanese, Korean, EU student patent). Some rayon screens are exposed and imaged. It is also suitable for some graphics applications.

Simple and simple laser direct plate making system-CTS laser direct plate making system and traditional silk screen plate making complete process, can directly read the format of 1-bit tiff data files, convert them into images and use laser head projection for exposure imaging, fine craftsmanship and traditional craftsmanship are complete Production, suitable for printing, decals, packaging, PCB, labels and signs, automotive glass, home appliance glass, electronic glass, decoration and other screen printing industries.

• Specification / Model	CTS100
  Max screen size ( mm )	900x1000
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	800x900
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	2540dpi
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	25W
  Equipment size (mm)	1550x1330x1460
  Equipment net weight	1100KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min

• High Precision:

           Resolutions 1270dpi or 2540dpi, with raster 133lpi/dpi (halftones printing).

• High Efficiency:

          3 minutes to finish the exposure on screen size 1000mm*1000mm. Stencil making efficieny has been greatly improved due to a lot of time

          is saved by the accurate exposure alignment and lobor reduction.

• Low Cost:

          Elimination of film positives. Litho film are becoming increasingly expensive and the number of suppliers on the maket is rapidly

          decreasing. 1 procedure of CTS digital screen making to replace 5 procedures of from the conventional process.

UV Laser Direct Imaging Machine

Textile Laser Direct Imaging Machine

3540dpi LDI Equipment

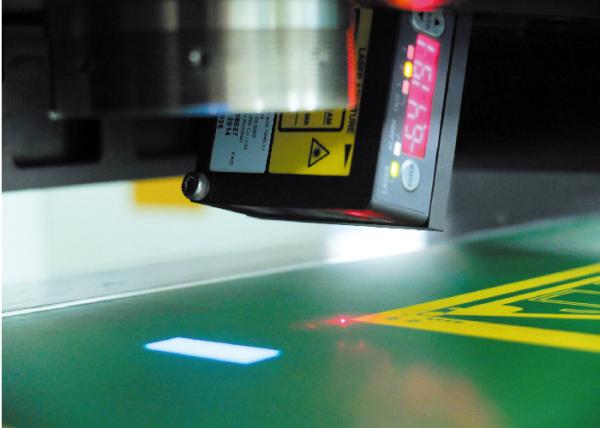

Textile Pre Press UV Laser Direct Imaging Machine 3540dpi Images
