CTS100 1270dpi Laser Direct Imaging Equipment ISO 9001

Direct To Screen Printer For Textile Printing 1720dpi

Max Screen Size 900*1000 Computer To Screen machine

Data files is directly read by the computer to screen (CTS) and then converted into images which will be transmitted through laser beams onto screens by DMD and lens.

The laser direct exposure machine introduces digital optical processing (DLP) technology into the field of screen imaging, using DLP laser direct imaging technology to replace the traditional film or mask exposure mode, and is equipped with HIWINSP-level guide rails and linear motor Renishaw gratings. Marble base, etc., to ensure the stability of the machine.

• Specification / Model	CTS100
  Max screen size ( mm )	900x1000
  Min screen size ( mm )	400x400
  Max exposure size ( mm )	800x900
  Screen frame thickness   (bespoke service is available)	25-45mm
  Imaging System	DMD DLP Technology
  Emulsion thickness (EOM)	Solvent resistant emulsion 3μm-150μm, water resistant emulsion 3μm-    220μm
  Exposure time	120-240s/ ㎡, #350 yellow mesh
  Resolution	1270/2540dpi (Optional)
  Raster	133LPI
  Focus system	Fixed focusing
  File format	1_bit tiff etc.
  Laser type	UV laser, wavelength 405±5nm
  Laser power	20W/25W(Optional)
  Equipment size (mm)	1550x1330x1460
  Equipment net weight	1100KG
  Conditions	Yellow light room with cleanliness Class 10000, temperature 22±2°C,   40-70% relative humidity (No condensation)
  Power	Single phase 220v, 50/60HZ, 4KW(CTS200,CTS300), gas 1L/min



1270dpi laser direct imaging equipment

CTS100 laser direct imaging equipment

ISO 9001 cts machine

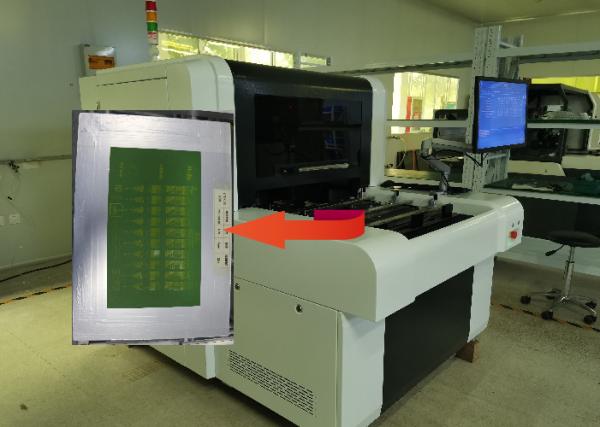

CTS100 1270dpi Laser Direct Imaging Equipment ISO 9001 Images
